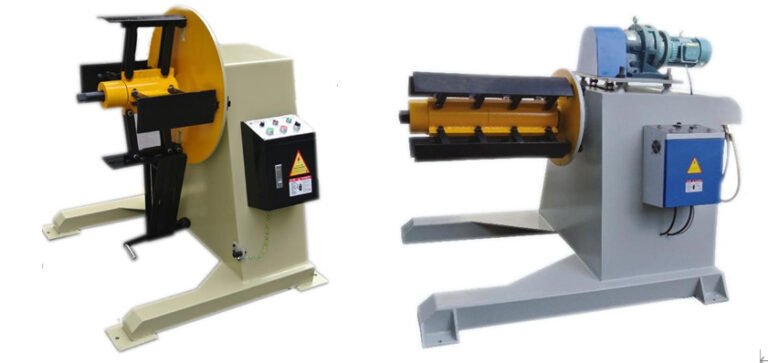

Automatic Material Rack (tc Heavy-duty)
Machine Features
- Suitable for more heavy volume of material feeding
- Can be used in conjunction with the optional no power type
- Maximum load can reach 30 tons
- Maximum material width can be customized 1800mm
- Optional press arm device
Technical Specification
Model | TC-300 | TC-400 | TC-500 | TC-600 | TC-700 | TC-800 | TC-1000 | TC-1300 | ||
Stock sheet Width(mm) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1300 | ||
Stock sheet Thickness(mm) | 2 | |||||||||
Coil Weight(kg) | 500-1000 | 1000-2000 | 2000-3000 | 3000-5000 | 3000-5000 | |||||
Coil O.D.(mm) | Ø1200 | |||||||||
Coil I.D.(mm) | Ø450~Ø530 | |||||||||
Motor Model(kw) | 0.75 | 0.75 | 1.5 | 2.2-3.0 | ||||||
Supply voltage | AC220/380V | |||||||||
